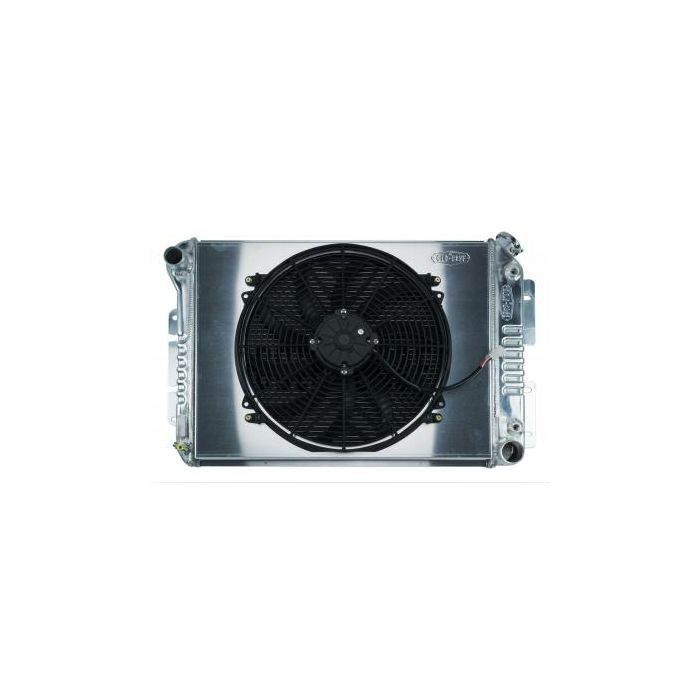

1967-1969 Camaro Cold Case Aluminum Radiator & Fan Kit, AT, Single 16 Inch Fan & Shroud Big Block
Fitment
Product Details
-100% TIG welded
-(2) 1.25" Tubes
-All Aluminum
-Polished OE style tanks
-16 fins per inch
-Corrugated fins that give more surface area and more thermal transfer
-Pressure tested
-For automatic trans
-Direct fitment for 67-69 Camaro
67-69 Camaro w/ Big Block
*Can be used on SB cars. Will need to swap out fan shroud.
1967-1969 Chevrolet Camaro Aluminum Performance Radiator. AT Cars.
These COLD-CASE radiators are Tig welded 100% aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE
Radiator Specs
Core Height |
16.85" |
Core Width | 23" |
Overall Height | 18.5" |
Overall Width |
27.5" |
Overall Thickness |
3" |
Tubes | (2) 1.25" Tubes |
Upper Hose | 1.50" |
Lower Hose | 1.77" |
1967-1969 Camaro Cold Case Aluminum Radiator & Fan Kit, AT, Single 16 Inch Fan & Shroud
Base Part Number | 461648 |
---|---|
Eck OEM Number | CHC11AK |
Brand | Cold Case Radiators |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet Camaro Base | Series | Body | Notes | Year 1967, 1968, 1969 |
Make / Model Chevrolet Camaro RS | Series | Body | Notes | Year 1967, 1968, 1969 |
Make / Model Chevrolet Camaro SS | Series | Body | Notes | Year 1967, 1968, 1969 |
Make / Model Chevrolet Camaro Z28 | Series | Body | Notes | Year 1967, 1968, 1969 |
