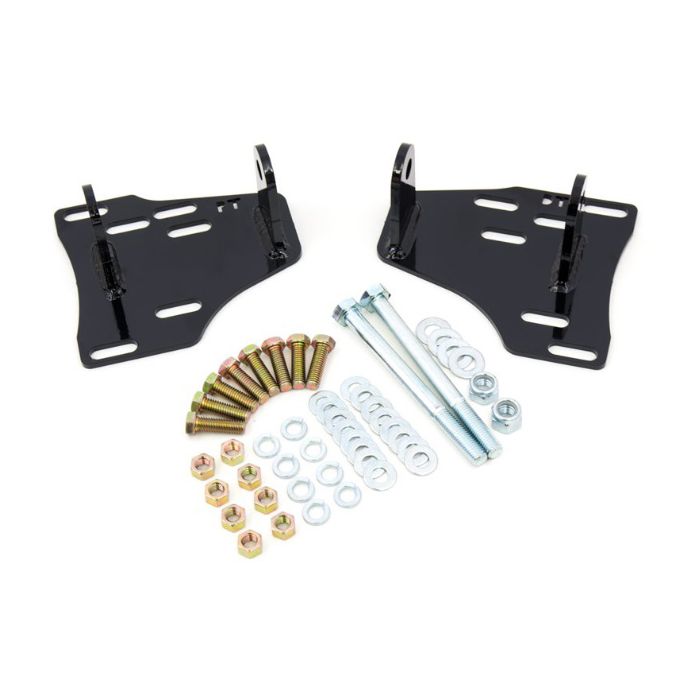

1974-1992 Camaro LSX Engine Mounts, Bolt In Style

• Fits 1974 To 1992 Chevrolet Camaro
• Fits 1974 To 1992 Pontiac Firebird
• CNC Laser Cut Mounting Plates And Stand Offs
• Slotted For Rearward Engine Adjustment And Perfect Fit
• Multiple Mounting Holes To Fit A Variety Of Vehicles
• High Grade Mounting Hardware And Motor Mount Bolts Included
• Durable High Grade Black Or Red Powder Coat

UMI’s P/N 2406 allows the installation of LS power into your 1978-1988 GM G-Body, 1982
-1992 3rd generation Camaro/Firebird and the 1974-1981 2nd generation Camaro/Firebird.
UMI’s LSX adapter plates bolt directly to the frame and allow the installation of any LSX
engine. P/N 2406 fits factory LS engine mounts and also works with UMI P/N 2323 solid
aluminum motor mounts. UMI’s LS mounts place the LS engine in the factory location with
the ability to move the engine rear-ward  up to 1”. LS mounts are CNC laser cut from 3/16”
thick steel with MIG welded ¼” thick stand offs, high grade mounting hardware included.

Note: UMI’s LSx mounts were built around the LS1 oil pan and will also work with the
Holley 302 pan. When using the LS1 oil pan or Holley 302 pan crossmember cutting was not
needed. Other oil pans may require crossmember trimming for clearance. Factory A/C
compressor will clear when frame is notched.
