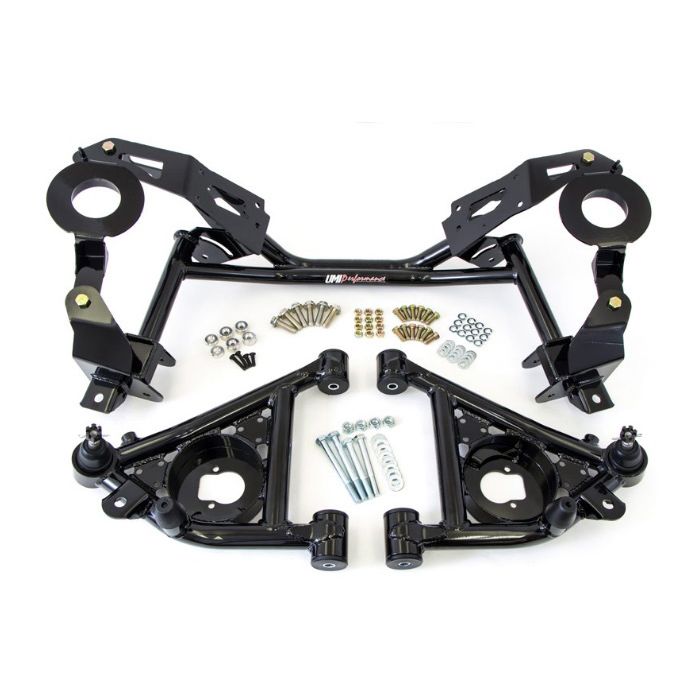

1982-92 Tubular K-Member & A-Arm Pkg - Factory Spgs

• Fits 1982 To 1992 Chevrolet Camaro
• Fits 1982 To 1992 Pontiac Firebird
• Reduces 25 lbs Of Front End Weight
• Accepts Factory Springs And Lowering Springs
• Includes New Mounting Hardware
• Double Tube Construction For Superior Strength
• Strong 3/16??? Thick Mild Steel Engine And Suspension Mounts Held Together With 1-1/2???
• Dia DOM Tubing
• CNC Machined And Jig-Built For No Hassle Installation
• MIG And TIG Welded
• Direct Bolt-in Design
• Lower A-arms Are Jig-Built With Polyurethane Bushings Installed (See P/N 2031 For Complete
• Details)
• Durable Red Or Black Powder Coat
• Modular Design Allows Use Of Coil-Overs And/Or LS Mounts For Minimal Cost
• Manufactured With Pride In Philipsburg, PA - USA

We all know weight equals horsepower. UMI???s direct bolt-in replacement K-member and
lower a-arm kit instantly removes 25 lbs of front end weight from your ride and helps your
existing horsepower work for you. Strong dual tube construction and a host of high-
strength features ensure the will survive street use, drag strip blasts and
autocross action. The K-member is fabricated from CNC machined 3/16??? thick mild steel
held together by a strong dual tube lower section. Factory clamshell and engine mounts
bolt to the precision machined mounting pads while both factory and aftermarket
suspension is located by strong boxed mounting points. Lightening holes are CNC
machined into the mounting plates and the tubular construction provides added clearance
for aftermarket exhaust. The k-member design permits stock spring and strut use while the
lower a-arms feature a spring locating pocket. The lower a-arms feature TIG welded tubular
construction, adjustable steering stops and polyurethane bushings. Street and track testing
on our ???89 IROC test car has shown this K-member and a-arm kit to be strong, reliable and a
great upgrade for your high performance ride. Available in tough powder coated red or
black finish. Manufactured with pride in Philipsburg, PA ??? USA. Save $60.00 when
purchasing these items as a kit!

LSX Motor Mount Option: LSX motor mount option includes fabricated motor mounts to
attach any LSX motor to your new UMI K-member. Fabricated motor mounts require the use
of factory rubber LS motor mounts and will also work with aftermarket polyurethane motor
mounts or UMI???s solid motor mounts P/N 2323.

1982-92 Camaro Tubular K-Member & A-Arm Package - Factory Spings
