SKU
33-395089-1
FiTech Go EFI 2x4 Dual-Quad 625 HP Self-Tuning Fuel Injection Systems Master Kit With Inline Fuel Pump, Cast Finish, 31061
0
Reviews
Add Your Review
$2,110.99
Kit
Product Details
KEY FEATURES & BENEFITS:
Replaces your single 4 barrel V-8 carburetor with precise fuel injection technology
Fits factory and aftermarket (Edelbrock, Holley) 2x4 4-barrel V8 intake manifolds and air cleaner assemblies
NOTE: Does NOT include intake manifold
Eliminates hard starting, sputtering, cold start warmups, interior fuel smell
Instant starting and throttle response (even after long term storage), improves mileage, superior all-climate drivability
Wet flow "swirl" fuel technology increases performance over other designs
Self-tunes in minutes with no laptop tuning required
Voltage fuel pump control reduces fuel pump heat and extends life
Uses same throttle and transmission linkage as 4150 Holley carburetors
Idle compensates for a A/C (if equipped) so no A/C solenoid is required
GM style sensors can be replaced locally at most auto parts Stores
Integrated OBD-II style diagnostics, limp home mode allows you to drive should a sensor fail
Cast Finish Throttle Bodies
Master Kit Includes Inline Fuel Pump for a ONE STOP SHOP installation
SPECIFICATIONS:
Quality Level: High performance upgrade
Throttle Body Construction: Die cast aluminum
Color: Bright Tumble polished
Metering Style: Speed density
Throttle Body Mounting Flange: 4-barrel square bore, drilled for quadrajet as well
Quadrajet Fitment: Drilled for Quadrajet, requires separate Quadrajet adapter plate Purchase - P/N 122276
Venturi Qty: 8
Injector Quantity: 8
Fuel Inlet Locations: 6
Timing Control: Yes, does not require CDI box to control timing
Max Flywheel Horsepower: Up to 625
Supports Forced Induction & Nitrous: No
Self Tuning: Yes, in minutes...just answer a few questions on touch screen display
Laptop Tuning: No
Fuel Pump / System Included: No, see related items tab

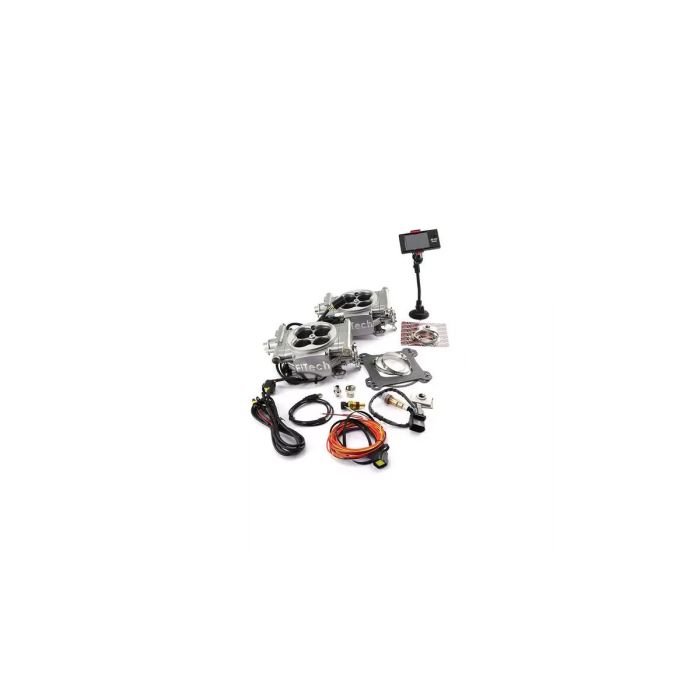

What's In The Box: Throttle bodies, fuel rails w/-06AN fuel inlet fittings, fuel injectors, ECM with calibration module, handheld touch screen controller w/windshield mount, plug-n-play wiring harness, Bosch 4.2 wide band 02 sensor and clamp on 02 bung kit, fuel pressure regulator, GM type 2.5 BAR MAP sensor, GM type TPS sensor, GM type IAC motor, GM type coolant temperature sensor, GM type adjustable control fan switch, gasket kit, step by step instructions
Manufacturer Limited Warranty: 1-year all parts except ECM, lifetime on ECM only
Product Weight: 22 lbs.
Product Dimensions: 14 x 12 x 8
Approx. Installation Time: 6-8 hours, experienced mechanic times quoted, yours will take longer
Installation Difficulty: Difficult, seek professional installation or for the experienced do-it-yourselfer
50-State Emission Legal: NoDual Quad! EFI ! Nothing says Muscle like 2 big 4 BBL's on a V8 . FiTech EFI has made it simple with their Go EFI 2X4 625 HP self-tuning System. This kit is a bolt on for the most popular manifolds including the Edelbrock line of dual quad manifolds WITHOUT any adapters! They fit and look like they belong there because they were designed to fit from the start. Our normally aspirated kits are good thru 625 hp but our Go EFI 2X4 POWER ADDER kit can handle you guys with the bigger cubes and Roots Superchargers. One Throttle Body handles all of the brains while the second holds 4 additional injectors, and the IAC motor for idle stability. These can also be used in cross ram and tunnel ram configurations. No boost with these please! Bolt on 2 of these tough looking throttle bodies and drive your car as the system dials itself into the perfect calibration for all of your driving and weather conditions. If you decide you want to tune for more power or economy, the FiTech Touch Screen controller allows quick and easy on the fly adjustments at your fingertips!
This Master Kit includes the inline fuel pump for a ALL IN ONE kit!
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
FiTech Go EFI 2x4 Dual-Quad 625 HP Self-Tuning Fuel Injection Systems Master Kit With Inline Fuel Pump 31061
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 395089 |
---|---|
Eck OEM Number | 31061 |
Brand | N/A |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model | Series | Body | Notes | Year 0 |
Make / Model Chevrolet Camaro Base | Series | Body | Notes | Year 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1982, 1983 |
Make / Model Chevrolet Camaro Berlinetta | Series | Body | Notes | Year 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 |
Make / Model Chevrolet Camaro LT | Series | Body | Notes | Year 1973, 1974, 1975, 1976, 1977, 1978, 1987 |
Make / Model Chevrolet Camaro LT Rally Sport | Series | Body | Notes | Year 1976, 1977, 1978 |
Make / Model Chevrolet Camaro Rally Sport | Series | Body | Notes | Year 1976, 1977, 1978, 1979, 1980 |
Make / Model Chevrolet Camaro RS | Series | Body | Notes | Year 1967, 1975 |
Make / Model Chevrolet Camaro Sport | Series | Body | Notes | Year 1981, 1982, 1983, 1984, 1985, 1986, 1987 |
Make / Model Chevrolet Camaro SS | Series | Body | Notes | Year 1967, 1969 |
Make / Model Chevrolet Camaro Z28 | Series | Body | Notes | Year 1967, 1968, 1969, 1972, 1974, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987 |
Make / Model Chevrolet Camaro Z28 Indianapolis 500 Pace Car | Series | Body | Notes | Year 1982 |
