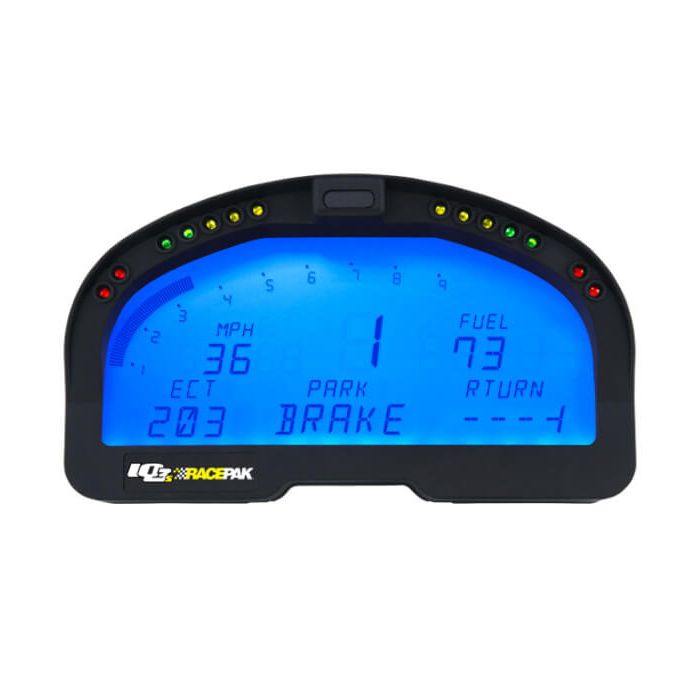

RacePak IQ3 Street Dash Gauge Cluster With Data Logging

• IQ3s Dash
• Wiring harness (includes 2 programming buttons)
• 1 - Oil Pressure Sensor
• 2 - Fluid Temperature Sensors (Coolant & Transmission)
• USB programming cable
• Micro SD Card
• USB SD Card adapter
• Racepak Datalink II software

Racepak IQ3 data recorders represent an entirely new concept in data logging dashes. By placing the 32-channel data logger, 512 MB memory card, GPS board, and 3-axis G-meter inside the dash, every feature of the data system is now located in one central location. This means that only one small cable will transmit the data from all the sensors to the rear of the dash. This eliminates the need for a sensor harness, greatly reducing installation time, complexity and overall weight. The programmable shift lights are protected from sunlight by a molded shield above the lights, while the low-glare LCD display is well recessed in the housing to provide viewing in all light conditions. The rear of the dash contains the connectors for the external GPS antenna and V-Net sensor cable—plus the power, ground, and engine rpm external programming button harnesses. All data is stored in a MicroSD memory card located in the front of the dash between the programmable shift lights. This design insures easy access to the memory card for data download.

Q3SL STREET LOGGER DASH the IQ3SL Street Logger Dash adds data logging to the popular IQ3S Street Display Dash.
