UMI Performance Tunnel Mounted Torque Arm - 700R4 & T5 - With Loop | 2217-R Camaro 19982-92
Fitment
Product Details
- Fits 1982 To 1992 Chevrolet Camaro
- Fits 1982 To 1992 Pontiac Firebird
Torque Arm Benefits:
Build Features:
Rear Torque Arm Hardware Kit- We highly recommend purchasing a new hardware kit if running this torque arm on a stock rear-end, Strange or other similar rear-ends that use a straight through bolt design. OEM torque arm bolts will work however are slightly too short and may not work correctly. If you are running a Moser Engineering 12-Bolt rear-end this kit is not needed, you must reuse hardware supplied by Moser Engineering. This kit however is recommended for the Moser 9"
This tunnel mounted torque arm is designed to work with factory 700R4 automatic transmission and manual T5 5-speed transmission. This item is supplied with a new transmission crossmember with provisions to work with both the 700R4 and T5 transmission. Set-up requires no modifications and is a 100% bolt in design.
This torque arm set-up is designed to remove the front mounting point of the torque arm off the transmission, protecting the tail shaft from damage. This torque arm is supplied with pivot brackets that allow (2) settings to allow easy instant center adjustments. By simply moving the torque arm into the next location you can automatically change the instant center point of the vehicle. This is very crucial on low to mid horse-power cars and can easily lower 60-foot times. This set-up bolts to existing floor pan holes using 0.188" thick mild steel CNC machined mounting plates and metric grade 10.9 hardware. The complete cross brace is constructed of 0.120" thick rectangular tubing and attaches to the torque arm using 0.250" thick mild steel mounting pivot plates with Grade 8 hardware. The torque arm is attached to the supplied cross brace using an Energy Suspension polyurethane bushing set-up on both the supplied cross brace and torque arm. Polyurethane was chosen as a mounting point to keep road noise at a minimum and eliminate unwanted "clunks" found with other set-ups available. The grease-able polyurethane bushings absorb road irregularities and protect noise from entering the passenger compartment. The rear mounting points feature 0.375" thick CNC machined mounting plates and are appropriately drilled to fit your stock rear as well as aftermarket 12-Bolt and 9" Rear-end housings. This set-up requires no welding or drilling and can be installed with basic hand tools; this is a complete bolt-in design!

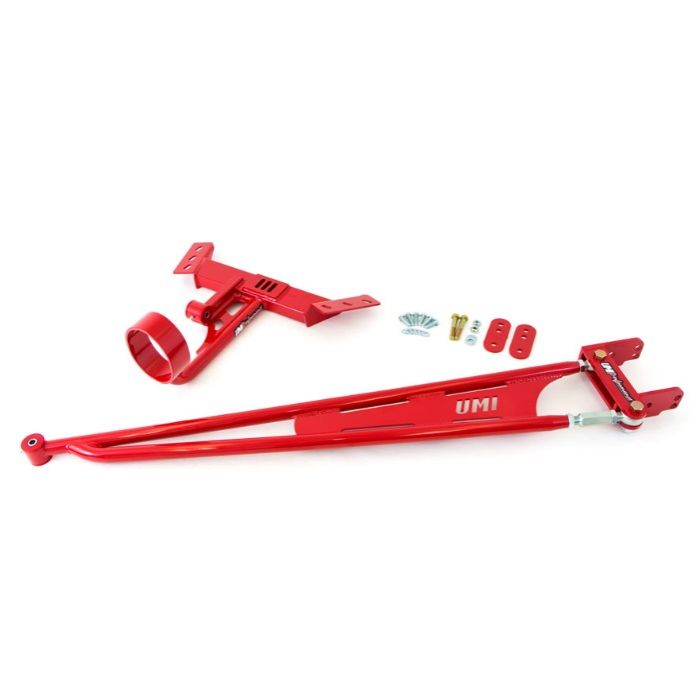

1982-92 Camaro Tunnel Mounted Torque Arm - 700R4 & T5 - With Loop
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 390560 |
---|---|
Eck OEM Number | 2217-R |
Brand | N/A |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet Camaro Base | Series | Body | Notes | Year 1982, 1983 |
Make / Model Chevrolet Camaro Berlinetta | Series | Body | Notes | Year 1982, 1983, 1984, 1985, 1986 |
Make / Model Chevrolet Camaro Iroc-Z | Series | Body | Notes | Year 1985, 1986, 1987 |
Make / Model Chevrolet Camaro LT | Series | Body | Notes | Year 1987 |
Make / Model Chevrolet Camaro Sport | Series | Body | Notes | Year 1982, 1983, 1984, 1985, 1986 |
Make / Model Chevrolet Camaro Z28 | Series | Body | Notes | Year 1982, 1983, 1984, 1985, 1986 |
Make / Model Chevrolet Camaro Z28 Indianapolis 500 Pace Car | Series | Body | Notes | Year 1982 |
